Truck Mounted
One Person Operation • Large capacity • Greater productivity
All-in-one chassis units are easy to operate with joystick control, maximizing productivity. One operator can now handle the job that used to take two. These units are used year-round for small jobs and seasonal cleanup, delivering years of dependable service. Imagine handling your toughest jobs quickly and with ease. There are dozens of uses including large events, universities, spring cleanup, disaster recovery, stormwater PMPs, and helping you meet and exceed MS4 for compliance.
• Available with a 25- or 30-cubic yard hopper.

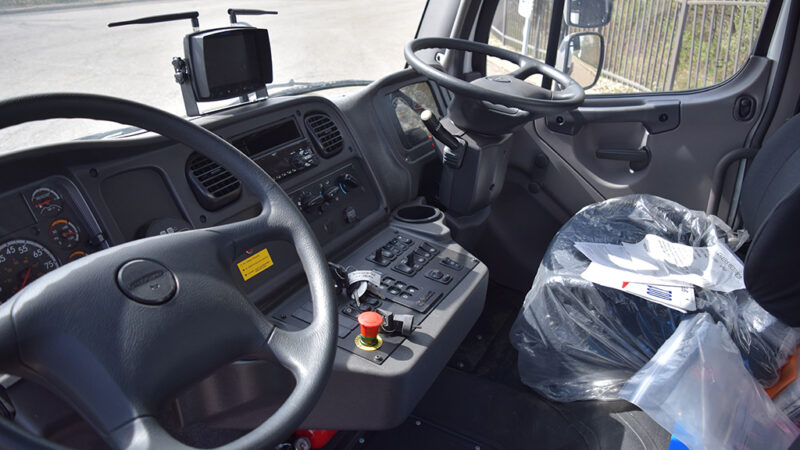

• 6-way remote boom with engine-driven hydraulics and in-cab joystick controller One-piece or two piece rear door for dumping ease in any situation.
• 74 HP diesel engine.
• Automatic, direct drive with over-center clutch protects engine from shock loads.
• 30″ steel fan with six abrasion-resistant blades is statically and dynamically balanced.
• 24,200 CFM for highly efficient air and litter movement.

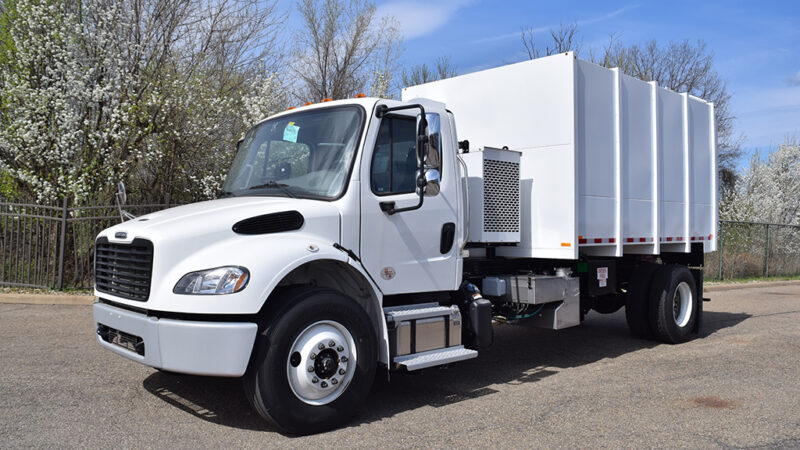

Chassis
- • Freightliner M2 106 chassis 33,000 GVW 30YD 35,000GVW
- • Dual steering controls – Standard
- • Engine forward less particulate matter buildup
- • Cummins 6.7L 260 HP 660 LB-FT @1600 RPM
- • Turbo Diesel 18.7 CFM Compressor
- • Block heater Phillips 1000 W / 115 Volt
- • Allison 2500 Auto transmission
- • Detroit Fuel / Water separator w/heater
- • Dual premium high back air suspension seats w integrated lumbar support, adjustable shock absorber
- • 14,600# Front leaf suspension
- • 21,000# Rear axle
- • Michelin XZE2 11R22.5 14 PLY Radial Front tires
- • Michelin X 11R22.5 14 PLY Radial Rear tires
- • A/C, Power windows, AM/FM Radio
Auxiliary Engine
- • Kubota 3.8L 87HP Gas engine standard
- • 74 HP John Deere Tier 4 – Option
- • Patented ECO-MODETM system controls which reduces fuel consumption upwards of 35% (~3.1 fewer gal/hr, 15-18 less gallons per day), noise (50%), dust (40%), and wear & tear
- • Radiator air screen pleated and boxed protective, with tool free access

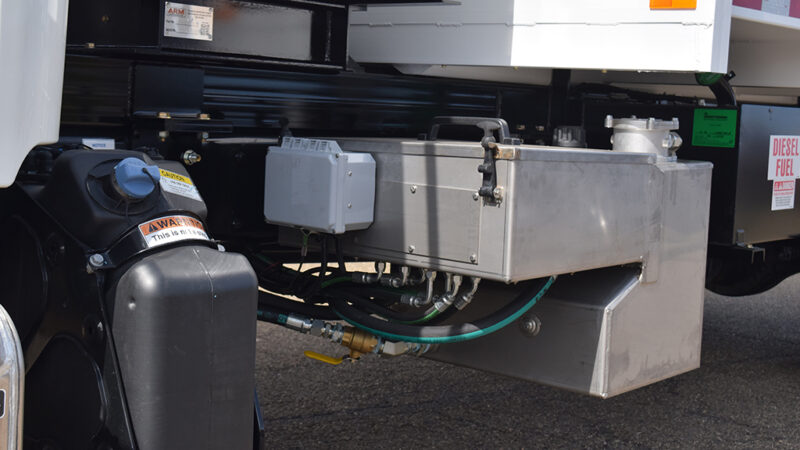

- • Fuel tank 40 Gallon polyethylene
Engine/Vacuum System Skid
- • Tab and Slot construction throughout
- • All metal laser-cut for precision

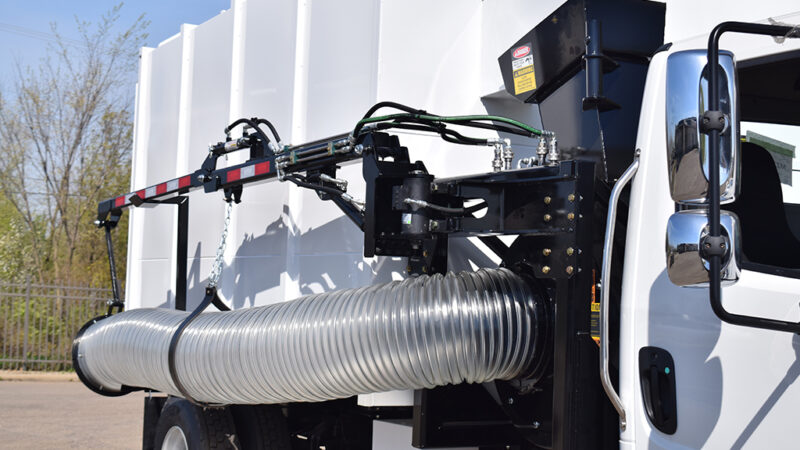

Boom/Hose
- • Single Axis: Nozzle mounted hydraulic controls
- • Power-up and flow-controlled gravity down
- • Nozzle mounted hydraulic controls
- • 2 and 3-axis available
- • Remote control available for 2 and 3-axis
- • Clearly-SafeTM 68”+ Mailbox avoidable design
- • Hydraulic powered 12V system
- • 16”x120” HD flexible rubber hose w/steel nozzle
- • Option: Urethane vacuum hose w/steel nozzle
Clutch
- • PTO engage / disengage
- • Automotive style 13”
- • 2.25” shaft
- • Belt drive reduces shock and vibration
- • Easily adjustable
Hoist
- • 16,000 LB single cylinder
- • Welded into frame
Fan / Impeller
- • 28” fan standard – 30% Compaction
- • Option: 30” Fan – 25% Compaction
- • Option: SHRED-MASTERTM Fan – 40+% Compaction
- • Self-clearing
- • Scalloped design reduces decibel level
- • Back plate protects bearings and shaft
- • Fans are robotically welded, stress relieved and statically and dynamically balanced
- • AR400 material
Fan Bearings
- • Proprietary Quad-GlideTM sealed bearings
- • Designed in partnership with Timken engineering
- • Grease zerks located outside housing with high pressure feed lines
Fan Housing
- • Robotically welded
- • Clearly -SafeTM 68” high cleanout door accessibility
- • Cleanout door is safety interlocked
- • Replaceable 1⁄4” steel liners
Active Dust Control
- • Bottom exhaust vents top-down street side
- • Reduced velocity of air speed
- • Shut off for dump mode
- • Drives a 4 groove power band

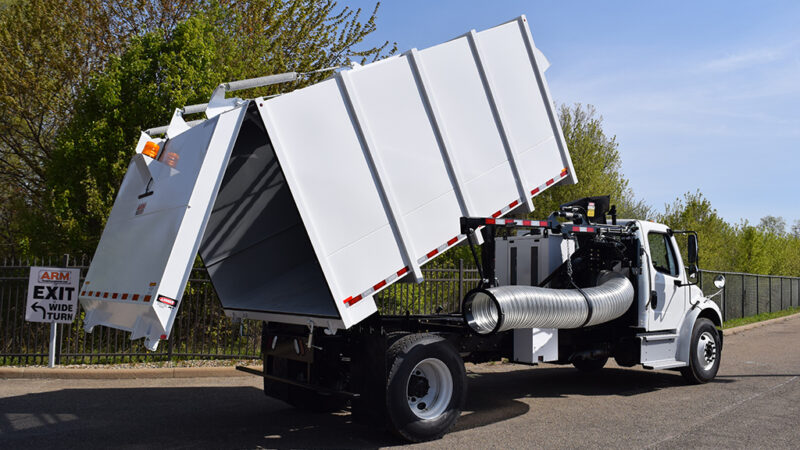

Rear Door
- • Single operator controlled, w/In-cab dump control
- • Top hinge door
- • Chipper door option
- • Back up camera
- • Pintle hitch
- • Gear driven pump
- • 15.2 Ton hydraulic hoist
- • Dump angle 52 degrees
- • High door clearance 18” at full dump
- • Disengage fan for easier door latching
- • Higher RPM faster dumping w/o fan
- • Heavy duty bumper
- • LED type DOT w/two amber flashers

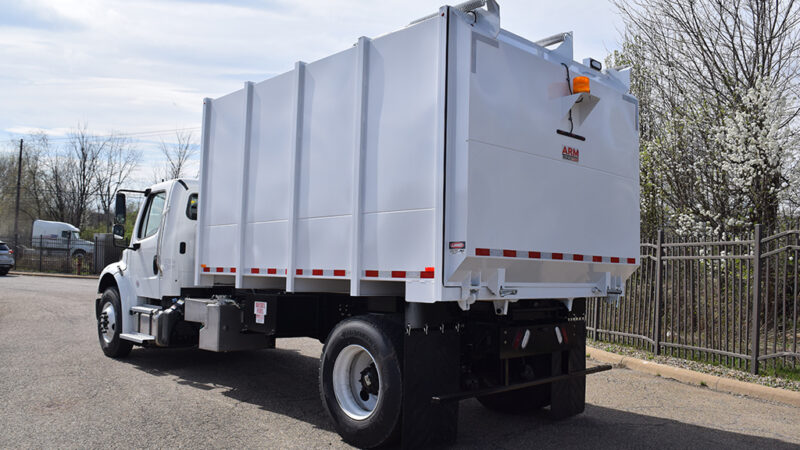

Hopper Construction
- • Heavy duty 11-gauge steel
- • Integrated floor drainage system
- • Regular perforated steel with mesh overlay vents
- • Perforated stainless steel vents – Option
- • Paint Standard white custom available
